ValidMind for development 4 — Finalize testing and documentation

Learn how to use ValidMind for your end-to-end documentation process with our introductory notebook series. In this last notebook, finalize the testing and documentation of your model and have a fully documented sample model ready for review.

We'll first use run_documentation_tests() previously covered in 2 — Start the development process to ensure that your custom test results generated in 3 — Integrate custom tests are included in your documentation. Then, we'll view and update the configuration for the entire documentation template to suit your needs.

Learn by doing

Our course tailor-made for developers new to ValidMind combines this series of notebooks with more a more in-depth introduction to the ValidMind Platform — Developer Fundamentals

Prerequisites

In order to finalize the testing and documentation for your sample model, you'll need to first have:

Need help with the above steps?

Refer to the first three notebooks in this series:

Setting up

This section should be very familiar to you now — as we performed the same actions in the previous two notebooks in this series.

Initialize the ValidMind Library

As usual, let's first connect up the ValidMind Library to our model we previously registered in the ValidMind Platform:

  1. On the left sidebar that appears for your model, select Getting Started and select Development from the Document drop-down menu.

  2. Click Copy snippet to clipboard.

  3. Next, load your model identifier credentials from an .env file or replace the placeholder with your own code snippet:

# Make sure the ValidMind Library is installed

%pip install -q validmind

# Load your model identifier credentials from an `.env` file

%load_ext dotenv
%dotenv .env

# Or replace with your code snippet

import validmind as vm

vm.init(
    # api_host="...",
    # api_key="...",
    # api_secret="...",
    # model="...",
    document="documentation",
)
Note: you may need to restart the kernel to use updated packages.
2026-09-24 21:49:07,146 - INFO(validmind.api_client): 🎉 Connected to ValidMind!
📊 Model: [ValidMind Academy] Model development (ID: cmalgf3qi02ce199qm3rdkl46)
📁 Document Type: model_documentation

Import sample dataset

Next, we'll import the same public Bank Customer Churn Prediction dataset from Kaggle we used in the last notebooks so that we have something to work with:

from validmind.datasets.classification import customer_churn as demo_dataset

print(
    f"Loaded demo dataset with: \n\n\t• Target column: '{demo_dataset.target_column}' \n\t• Class labels: {demo_dataset.class_labels}"
)

raw_df = demo_dataset.load_data()
Loaded demo dataset with:

    • Target column: 'Exited'
    • Class labels: {'0': 'Did not exit', '1': 'Exited'}

We'll apply a simple rebalancing technique to the dataset before continuing:

import pandas as pd

raw_copy_df = raw_df.sample(frac=1)  # Create a copy of the raw dataset

# Create a balanced dataset with the same number of exited and not exited customers
exited_df = raw_copy_df.loc[raw_copy_df["Exited"] == 1]
not_exited_df = raw_copy_df.loc[raw_copy_df["Exited"] == 0].sample(n=exited_df.shape[0])

balanced_raw_df = pd.concat([exited_df, not_exited_df])
balanced_raw_df = balanced_raw_df.sample(frac=1, random_state=42)

Remove highly correlated features

Let's also quickly remove highly correlated features from the dataset using the output from a ValidMind test.

As you learned previously, before we can run tests you'll need to initialize a ValidMind dataset object:

# Register new data and now 'balanced_raw_dataset' is the new dataset object of interest
vm_balanced_raw_dataset = vm.init_dataset(
    dataset=balanced_raw_df,
    input_id="balanced_raw_dataset",
    target_column="Exited",
)

With our balanced dataset initialized, we can then run our test and utilize the output to help us identify the features we want to remove:

# Run HighPearsonCorrelation test with our balanced dataset as input and return a result object
corr_result = vm.tests.run_test(
    test_id="validmind.data_validation.HighPearsonCorrelation",
    params={"max_threshold": 0.3},
    inputs={"dataset": vm_balanced_raw_dataset},
)

❌ High Pearson Correlation

The High Pearson Correlation test evaluates pairwise linear relationships among features to identify potentially redundant or highly collinear variable pairs. The result table lists the top reported correlations, showing each feature pair, its Pearson correlation coefficient, and whether it exceeds the configured absolute threshold of 0.3. In this run, the reported coefficients range from -0.1739 to 0.3568, with one pair marked as failing the threshold and the remaining pairs marked as passing.

Key insights:

  • One pair exceeds threshold: The pair (Age, Exited) has a Pearson correlation coefficient of 0.3568, which is the only reported value above the absolute threshold of 0.3 and is therefore marked Fail.
  • All other reported pairs pass: The remaining nine reported pairs are marked Pass, with absolute correlation magnitudes ranging from 0.0338 to 0.1739, all below the configured threshold.
  • Largest non-failing relationship is modest: Among the passing pairs, (IsActiveMember, Exited) shows the largest absolute correlation at -0.1739, followed by (Balance, NumOfProducts) at -0.1624 and (Balance, Exited) at 0.1482.
  • Reported relationships are mostly weak: Aside from the single failing pair, the reported coefficients are clustered close to zero, including several near ±0.04, such as (NumOfProducts, Exited) at -0.0411 and (CreditScore, EstimatedSalary) at -0.0338.

The reported correlation structure is characterized by a single pair, (Age, Exited), exceeding the configured threshold, while all other listed feature pairs remain below it. The strongest observed relationship is positive, and the next-largest reported relationships are materially smaller in magnitude. Overall, the top reported correlations indicate limited pairwise linear association across most listed feature combinations, with one threshold breach identified in the output.

Parameters:

{
  "max_threshold": 0.3
}

Tables

Columns Coefficient Pass/Fail
(Age, Exited) 0.3568 Fail
(IsActiveMember, Exited) -0.1739 Pass
(Balance, NumOfProducts) -0.1624 Pass
(Balance, Exited) 0.1482 Pass
(NumOfProducts, Exited) -0.0411 Pass
(Age, EstimatedSalary) -0.0410 Pass
(NumOfProducts, IsActiveMember) 0.0403 Pass
(Age, NumOfProducts) -0.0390 Pass
(HasCrCard, IsActiveMember) -0.0341 Pass
(CreditScore, EstimatedSalary) -0.0338 Pass
# From result object, extract table from `corr_result.tables`
features_df = corr_result.tables[0].data
features_df
Columns Coefficient Pass/Fail
0 (Age, Exited) 0.3568 Fail
1 (IsActiveMember, Exited) -0.1739 Pass
2 (Balance, NumOfProducts) -0.1624 Pass
3 (Balance, Exited) 0.1482 Pass
4 (NumOfProducts, Exited) -0.0411 Pass
5 (Age, EstimatedSalary) -0.0410 Pass
6 (NumOfProducts, IsActiveMember) 0.0403 Pass
7 (Age, NumOfProducts) -0.0390 Pass
8 (HasCrCard, IsActiveMember) -0.0341 Pass
9 (CreditScore, EstimatedSalary) -0.0338 Pass
# Extract list of features that failed the test
high_correlation_features = features_df[features_df["Pass/Fail"] == "Fail"]["Columns"].tolist()
high_correlation_features
['(Age, Exited)']
# Extract feature names from the list of strings
high_correlation_features = [feature.split(",")[0].strip("()") for feature in high_correlation_features]
high_correlation_features
['Age']

We can then re-initialize the dataset with a different input_id and the highly correlated features removed and re-run the test for confirmation:

# Remove the highly correlated features from the dataset
balanced_raw_no_age_df = balanced_raw_df.drop(columns=high_correlation_features)

# Re-initialize the dataset object
vm_raw_dataset_preprocessed = vm.init_dataset(
    dataset=balanced_raw_no_age_df,
    input_id="raw_dataset_preprocessed",
    target_column="Exited",
)
# Re-run the test with the reduced feature set
corr_result = vm.tests.run_test(
    test_id="validmind.data_validation.HighPearsonCorrelation",
    params={"max_threshold": 0.3},
    inputs={"dataset": vm_raw_dataset_preprocessed},
)

✅ High Pearson Correlation

The High Pearson Correlation test evaluates pairwise linear relationships between features to identify highly correlated pairs that may indicate redundancy or multicollinearity. The result table reports the top 10 feature pairs by Pearson correlation coefficient using a maximum threshold of 0.3 for failure assessment. Reported coefficients range from -0.1739 to 0.1482, and all listed pairs are marked as Pass. The strongest observed relationships are between IsActiveMember and Exited, Balance and NumOfProducts, and Balance and Exited.

Key insights:

  • No pair exceeds threshold: All reported feature pairs pass the 0.3 threshold. None of the listed absolute correlation coefficients reaches the failure boundary.
  • Strongest relationship remains weak: The largest absolute coefficient is 0.1739 for (IsActiveMember, Exited), which remains well below the configured threshold.
  • Top correlations are concentrated below 0.20: The three largest absolute correlations are (IsActiveMember, Exited) at -0.1739, (Balance, NumOfProducts) at -0.1624, and (Balance, Exited) at 0.1482. These values indicate only limited linear association among the highest-ranked pairs.
  • Several reported pairs are near zero: Lower-ranked entries such as (HasCrCard, IsActiveMember) at -0.0341, (CreditScore, EstimatedSalary) at -0.0338, and (CreditScore, HasCrCard) at -0.0305 show minimal linear relationship.

The reported correlation structure does not show evidence of high pairwise linear dependence within the top-ranked feature pairs under the 0.3 threshold. Observed relationships are uniformly weak in magnitude, with the highest absolute correlation below 0.18 and multiple pairs clustered near zero. Collectively, the result indicates limited pairwise linear redundancy among the features shown in this test output.

Parameters:

{
  "max_threshold": 0.3
}

Tables

Columns Coefficient Pass/Fail
(IsActiveMember, Exited) -0.1739 Pass
(Balance, NumOfProducts) -0.1624 Pass
(Balance, Exited) 0.1482 Pass
(NumOfProducts, Exited) -0.0411 Pass
(NumOfProducts, IsActiveMember) 0.0403 Pass
(HasCrCard, IsActiveMember) -0.0341 Pass
(CreditScore, EstimatedSalary) -0.0338 Pass
(CreditScore, IsActiveMember) 0.0332 Pass
(Balance, HasCrCard) -0.0326 Pass
(CreditScore, HasCrCard) -0.0305 Pass

Train the model

We'll then use ValidMind tests to train a simple logistic regression model on our prepared dataset:

# First encode the categorical features in our dataset with the highly correlated features removed
balanced_raw_no_age_df = pd.get_dummies(
    balanced_raw_no_age_df, columns=["Geography", "Gender"], drop_first=True
)
balanced_raw_no_age_df.head()
CreditScore Tenure Balance NumOfProducts HasCrCard IsActiveMember EstimatedSalary Exited Geography_Germany Geography_Spain Gender_Male
2615 496 1 176024.05 2 1 0 182337.98 0 False False False
7158 469 9 96776.49 1 1 1 119890.86 0 False True True
6875 568 7 0.00 2 1 0 143450.61 0 False False True
4375 588 1 143279.58 2 1 0 31580.80 1 True False False
3025 850 4 124425.99 1 0 0 118545.49 1 True False True
# Split the processed dataset into train and test
from sklearn.model_selection import train_test_split

train_df, test_df = train_test_split(balanced_raw_no_age_df, test_size=0.20)

X_train = train_df.drop("Exited", axis=1)
y_train = train_df["Exited"]
X_test = test_df.drop("Exited", axis=1)
y_test = test_df["Exited"]
from sklearn.linear_model import LogisticRegression

# Logistic Regression grid params
log_reg_params = {
    "penalty": ["l1", "l2"],
    "C": [0.001, 0.01, 0.1, 1, 10, 100, 1000],
    "solver": ["liblinear"],
}

# Grid search for Logistic Regression
from sklearn.model_selection import GridSearchCV

grid_log_reg = GridSearchCV(LogisticRegression(), log_reg_params)
grid_log_reg.fit(X_train, y_train)

# Logistic Regression best estimator
log_reg = grid_log_reg.best_estimator_

Initialize the ValidMind objects

Let's initialize the ValidMind Dataset and Model objects in preparation for assigning model predictions to each dataset:

# Initialize the datasets into their own ValidMind dataset objects
vm_train_ds = vm.init_dataset(
    input_id="train_dataset_final",
    dataset=train_df,
    target_column="Exited",
)

vm_test_ds = vm.init_dataset(
    input_id="test_dataset_final",
    dataset=test_df,
    target_column="Exited",
)

# Initialize the ValidMind model object
vm_model = vm.init_model(log_reg, input_id="log_reg_model_v1")

Assign predictions

Once the model is registered, we'll assign predictions to the training and test datasets:

vm_train_ds.assign_predictions(model=vm_model)
vm_test_ds.assign_predictions(model=vm_model)
2026-09-24 21:49:18,443 - INFO(validmind.vm_models.dataset.utils): Running predict_proba()... This may take a while
2026-09-24 21:49:18,445 - INFO(validmind.vm_models.dataset.utils): Done running predict_proba()
2026-09-24 21:49:18,445 - INFO(validmind.vm_models.dataset.utils): Running predict()... This may take a while
2026-09-24 21:49:18,446 - INFO(validmind.vm_models.dataset.utils): Done running predict()
2026-09-24 21:49:18,448 - INFO(validmind.vm_models.dataset.utils): Running predict_proba()... This may take a while
2026-09-24 21:49:18,449 - INFO(validmind.vm_models.dataset.utils): Done running predict_proba()
2026-09-24 21:49:18,449 - INFO(validmind.vm_models.dataset.utils): Running predict()... This may take a while
2026-09-24 21:49:18,450 - INFO(validmind.vm_models.dataset.utils): Done running predict()

Add custom tests

We'll also add the same custom tests we implemented in the previous notebook so that this session has access to the same custom inline test and local test provider.

Implement custom inline test

Let's set up a custom inline test that calculates the confusion matrix for a binary classification model:

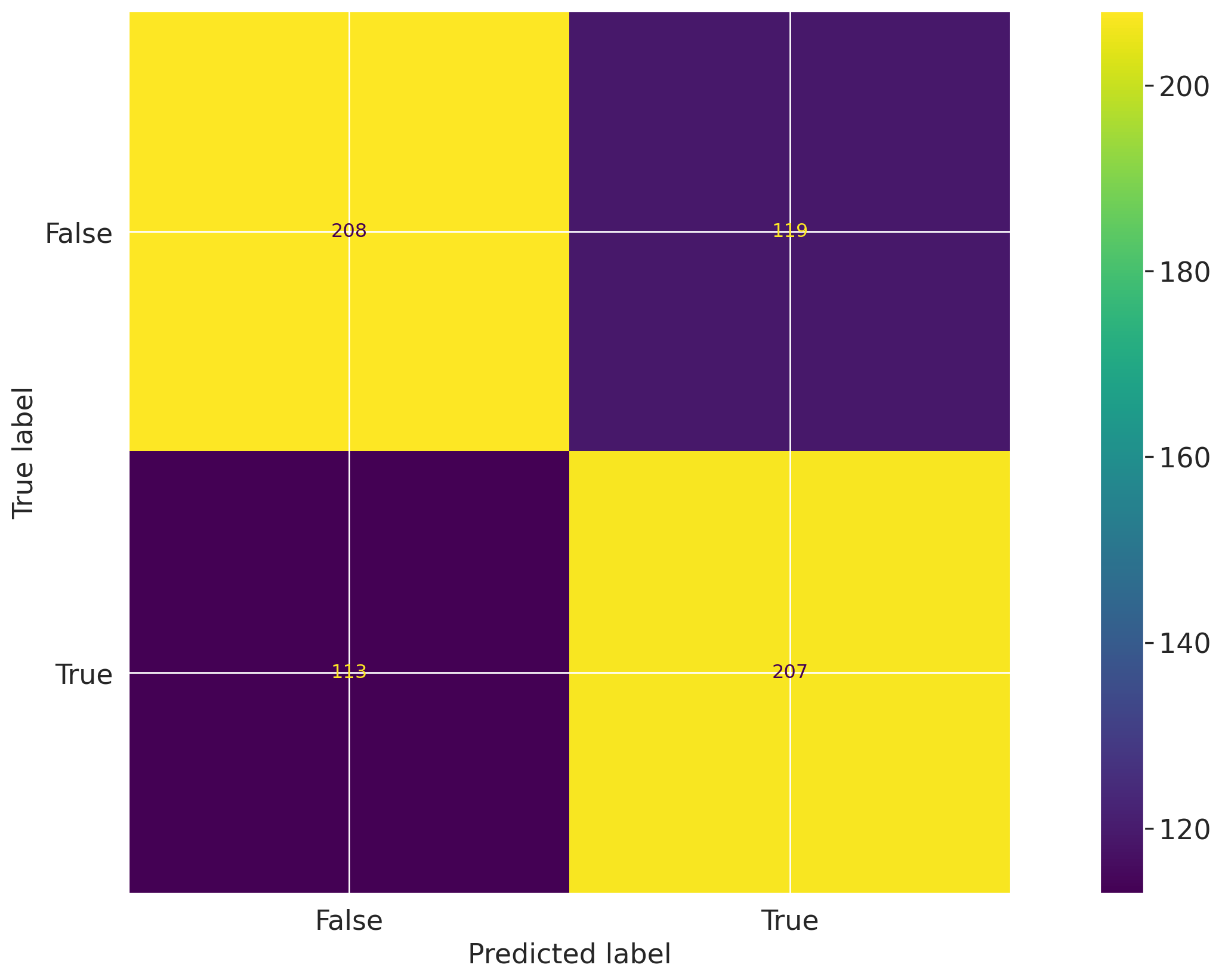

# First create a confusion matrix plot
import matplotlib.pyplot as plt
from sklearn import metrics

# Get the predicted classes
y_pred = log_reg.predict(vm_test_ds.x)

confusion_matrix = metrics.confusion_matrix(y_test, y_pred)

cm_display = metrics.ConfusionMatrixDisplay(
    confusion_matrix=confusion_matrix, display_labels=[False, True]
)
cm_display.plot()

# Create the reusable ConfusionMatrix inline test with normalized matrix
@vm.test("my_custom_tests.ConfusionMatrix")
def confusion_matrix(dataset, model, normalize=False):
    """The confusion matrix is a table that is often used to describe the performance of a classification model on a set of data for which the true values are known.

    The confusion matrix is a 2x2 table that contains 4 values:

    - True Positive (TP): the number of correct positive predictions
    - True Negative (TN): the number of correct negative predictions
    - False Positive (FP): the number of incorrect positive predictions
    - False Negative (FN): the number of incorrect negative predictions

    The confusion matrix can be used to assess the holistic performance of a classification model by showing the accuracy, precision, recall, and F1 score of the model on a single figure.
    """
    y_true = dataset.y
    y_pred = dataset.y_pred(model=model)

    if normalize:
        confusion_matrix = metrics.confusion_matrix(y_true, y_pred, normalize="all")
    else:
        confusion_matrix = metrics.confusion_matrix(y_true, y_pred)

    cm_display = metrics.ConfusionMatrixDisplay(
        confusion_matrix=confusion_matrix, display_labels=[False, True]
    )
    cm_display.plot()

    plt.close()  # close the plot to avoid displaying it

    return cm_display.figure_  # return the figure object itself
# Test dataset with normalize=True
result = vm.tests.run_test(
    "my_custom_tests.ConfusionMatrix:test_dataset_normalized",
    inputs={"model": vm_model, "dataset": vm_test_ds},
    params={"normalize": True},
)

Confusion Matrix Test Dataset Normalized

The ConfusionMatrix:test_dataset_normalized test evaluates classification outcomes by comparing predicted labels against true labels in a normalized confusion matrix. The displayed 2x2 matrix reports the relative share of observations in each outcome category for the test dataset, with rows representing true labels and columns representing predicted labels. The four normalized cell values shown are 0.30 for true negatives, 0.20 for false positives, 0.19 for false negatives, and 0.31 for true positives.

Key insights:

  • Correct classifications slightly exceed errors: The diagonal cells sum to 0.61 (0.30 true negatives and 0.31 true positives), while the off-diagonal cells sum to 0.39 (0.20 false positives and 0.19 false negatives).
  • Performance is balanced across classes: The two correct classification cells are nearly equal at 0.30 and 0.31, indicating similar normalized shares for correctly identified negative and positive cases.
  • Error types are evenly distributed: False positives account for 0.20 and false negatives account for 0.19, showing only a 0.01 difference between the two misclassification types.
  • Positive predictions are marginally more frequent: The predicted positive column totals 0.51 (0.20 + 0.31) versus 0.49 (0.30 + 0.19) for the predicted negative column.

The normalized confusion matrix indicates that classification outcomes are relatively evenly distributed across positive and negative classes, with a small majority of observations falling on the diagonal. Correct negative and correct positive outcomes appear at similar levels, and the two error categories are also closely matched. Overall, the result reflects a broadly balanced classification pattern on the test dataset rather than one dominated by a single class outcome or a single error type.

Parameters:

{
  "normalize": true
}

Figures

ValidMind Figure my_custom_tests.ConfusionMatrix:test_dataset_normalized:5d9e

Add a local test provider

Finally, let's save our custom inline test to our local test provider:

# Create custom tests folder
tests_folder = "my_tests"

import os

# create tests folder
os.makedirs(tests_folder, exist_ok=True)

# remove existing tests
for f in os.listdir(tests_folder):
    # remove files and pycache
    if f.endswith(".py") or f == "__pycache__":
        os.system(f"rm -rf {tests_folder}/{f}")
# Save custom inline test to custom tests folder
confusion_matrix.save(
    tests_folder,
    imports=["import matplotlib.pyplot as plt", "from sklearn import metrics"],
)
2026-09-24 21:49:24,775 - INFO(validmind.tests.decorator): Saved to /home/runner/work/documentation/documentation/site/notebooks/EXECUTED/development/my_tests/ConfusionMatrix.py!Be sure to add any necessary imports to the top of the file.
2026-09-24 21:49:24,776 - INFO(validmind.tests.decorator): This metric can be run with the ID: <test_provider_namespace>.ConfusionMatrix
# Register local test provider
from validmind.tests import LocalTestProvider

# initialize the test provider with the tests folder we created earlier
my_test_provider = LocalTestProvider(tests_folder)

vm.tests.register_test_provider(
    namespace="my_test_provider",
    test_provider=my_test_provider,
)

Reconnect to ValidMind

After you insert test-driven blocks into your model documentation, changes should persist and become available every time you call vm.preview_template().

However, you'll need to reload the connection to the ValidMind Platform if you have added test-driven blocks when the connection was already established using reload():

vm.reload()

Now, when you run preview_template() again, the three test-driven blocks you added to your documentation in the last two notebooks in should show up in the template in sections 2.3 Correlations and Interactions and 3.2 Model Evaluation:

vm.preview_template()
▶ 1. Conceptual Soundness ('conceptual_soundness')
▶ 2. Data Preparation ('data_preparation')
▶ 3. Model Development ('model_development')
▶ 4. Monitoring and Governance ('monitoring_governance')

Include custom test results

Since your custom test IDs are now part of your documentation template, you can now run tests for an entire section and all additional custom tests should be loaded without any issues.

Let's run all tests in the Model Evaluation section of the documentation. Note that we have been running the sample custom confusion matrix with normalize=True to demonstrate the ability to provide custom parameters.

In the Run the model evaluation tests section of 2 — Start the development process, you learned how to assign inputs to individual tests with run_documentation_tests(). Assigning parameters is similar, you only need to provide assign a params dictionary to a given test ID, my_test_provider.ConfusionMatrix in this case.

test_config = {
    "validmind.model_validation.sklearn.ClassifierPerformance:in_sample": {
        "inputs": {
            "dataset": vm_train_ds,
            "model": vm_model,
        },
    },
    "my_test_provider.ConfusionMatrix": {
        "params": {"normalize": True},
        "inputs": {"dataset": vm_test_ds, "model": vm_model},
    },
}
results = vm.run_documentation_tests(
    section=["model_evaluation"],
    inputs={
        "dataset": vm_test_ds,  # Any test that requires a single dataset will use vm_test_ds
        "model": vm_model,
        "datasets": (
            vm_train_ds,
            vm_test_ds,
        ),  # Any test that requires multiple datasets will use vm_train_ds and vm_test_ds
    },
    config=test_config,
)
2026-09-24 21:49:25,123 - WARNING(validmind.vm_models.test_suite.runner): Config key 'my_test_provider.ConfusionMatrix' does not match a test_id in the template.
    Ensure you registered a content block with the correct content_id in the template
    The configuration for this test will be ignored.
Test suite complete!
18/18 (100.0%)

Test Suite Results: Binary Classification V2

Check out the updated documentation on ValidMind.

Template for binary classification models.

▶ Model Evaluation

Configuring documentation template tests

Let's call the utility function vm.get_test_suite().get_default_config() which will return the default configuration for the entire documentation template as a dictionary:

  • This configuration will contain all the test IDs and their default parameters.
  • You can then modify this configuration as needed and pass it to run_documentation_tests() to run all tests in the documentation template if needed.
  • You still have the option to continue running tests for one section at a time; get_default_config() simply provides a useful reference for providing default parameters to every test.
import json

model_test_suite = vm.get_test_suite()
config = model_test_suite.get_default_config()
print("Suite Config: \n", json.dumps(config, indent=2))
Suite Config:
 {
  "validmind.data_validation.DatasetDescription": {
    "inputs": {
      "dataset": "dataset"
    },
    "params": {}
  },
  "validmind.data_validation.ClassImbalance": {
    "inputs": {
      "dataset": "dataset"
    },
    "params": {
      "min_percent_threshold": 10
    }
  },
  "validmind.data_validation.Duplicates": {
    "inputs": {
      "dataset": "dataset"
    },
    "params": {
      "min_threshold": 1
    }
  },
  "validmind.data_validation.HighCardinality": {
    "inputs": {
      "dataset": "dataset"
    },
    "params": {
      "num_threshold": 100,
      "percent_threshold": 0.1,
      "threshold_type": "percent"
    }
  },
  "validmind.data_validation.MissingValues": {
    "inputs": {
      "dataset": "dataset"
    },
    "params": {
      "min_percentage_threshold": 1.0
    }
  },
  "validmind.data_validation.Skewness": {
    "inputs": {
      "dataset": "dataset"
    },
    "params": {
      "max_threshold": 1
    }
  },
  "validmind.data_validation.UniqueRows": {
    "inputs": {
      "dataset": "dataset"
    },
    "params": {
      "min_percent_threshold": 1
    }
  },
  "validmind.data_validation.TooManyZeroValues": {
    "inputs": {
      "dataset": "dataset"
    },
    "params": {
      "max_percent_threshold": 0.03
    }
  },
  "validmind.data_validation.IQROutliersTable": {
    "inputs": {
      "dataset": "dataset"
    },
    "params": {
      "threshold": 1.5
    }
  },
  "validmind.data_validation.IQROutliersBarPlot": {
    "inputs": {
      "dataset": "dataset"
    },
    "params": {
      "threshold": 1.5,
      "fig_width": 800
    }
  },
  "validmind.data_validation.DescriptiveStatistics": {
    "inputs": {
      "dataset": "dataset"
    },
    "params": {}
  },
  "validmind.data_validation.PearsonCorrelationMatrix": {
    "inputs": {
      "dataset": "dataset"
    },
    "params": {}
  },
  "validmind.data_validation.HighPearsonCorrelation": {
    "inputs": {
      "dataset": "dataset"
    },
    "params": {
      "max_threshold": 0.3,
      "top_n_correlations": 10,
      "feature_columns": null
    }
  },
  "validmind.model_validation.ModelMetadata": {
    "inputs": {
      "model": "model"
    },
    "params": {}
  },
  "validmind.data_validation.DatasetSplit": {
    "inputs": {
      "datasets": "datasets"
    },
    "params": {}
  },
  "validmind.model_validation.sklearn.PopulationStabilityIndex": {
    "inputs": {
      "datasets": "datasets",
      "model": "model"
    },
    "params": {
      "num_bins": 10,
      "mode": "fixed"
    }
  },
  "validmind.model_validation.sklearn.ConfusionMatrix": {
    "inputs": {
      "dataset": "dataset",
      "model": "model"
    },
    "params": {
      "threshold": 0.5
    }
  },
  "validmind.model_validation.sklearn.ClassifierPerformance:in_sample": {
    "inputs": {
      "dataset": "dataset",
      "model": "model"
    },
    "params": {
      "average": "macro"
    }
  },
  "validmind.model_validation.sklearn.ClassifierPerformance:out_of_sample": {
    "inputs": {
      "dataset": "dataset",
      "model": "model"
    },
    "params": {
      "average": "macro"
    }
  },
  "validmind.model_validation.sklearn.PrecisionRecallCurve": {
    "inputs": {
      "model": "model",
      "dataset": "dataset"
    },
    "params": {}
  },
  "validmind.model_validation.sklearn.ROCCurve": {
    "inputs": {
      "model": "model",
      "dataset": "dataset"
    },
    "params": {}
  },
  "validmind.model_validation.sklearn.TrainingTestDegradation": {
    "inputs": {
      "datasets": "datasets",
      "model": "model"
    },
    "params": {
      "max_threshold": 0.1
    }
  },
  "validmind.model_validation.sklearn.MinimumAccuracy": {
    "inputs": {
      "dataset": "dataset",
      "model": "model"
    },
    "params": {
      "min_threshold": 0.7
    }
  },
  "validmind.model_validation.sklearn.MinimumF1Score": {
    "inputs": {
      "dataset": "dataset",
      "model": "model"
    },
    "params": {
      "min_threshold": 0.5
    }
  },
  "validmind.model_validation.sklearn.MinimumROCAUCScore": {
    "inputs": {
      "dataset": "dataset",
      "model": "model"
    },
    "params": {
      "min_threshold": 0.5
    }
  },
  "validmind.model_validation.sklearn.PermutationFeatureImportance": {
    "inputs": {
      "model": "model",
      "dataset": "dataset"
    },
    "params": {
      "fontsize": null,
      "figure_height": null
    }
  },
  "validmind.model_validation.sklearn.SHAPGlobalImportance": {
    "inputs": {
      "model": "model",
      "dataset": "dataset"
    },
    "params": {
      "kernel_explainer_samples": 10,
      "tree_or_linear_explainer_samples": 200,
      "class_of_interest": null
    }
  },
  "validmind.model_validation.sklearn.WeakspotsDiagnosis": {
    "inputs": {
      "datasets": "datasets",
      "model": "model"
    },
    "params": {
      "features_columns": null,
      "metrics": null,
      "thresholds": null
    }
  },
  "validmind.model_validation.sklearn.OverfitDiagnosis": {
    "inputs": {
      "model": "model",
      "datasets": "datasets"
    },
    "params": {
      "metric": null,
      "cut_off_threshold": 0.04
    }
  },
  "validmind.model_validation.sklearn.RobustnessDiagnosis": {
    "inputs": {
      "datasets": "datasets",
      "model": "model"
    },
    "params": {
      "metric": null,
      "scaling_factor_std_dev_list": [
        0.1,
        0.2,
        0.3,
        0.4,
        0.5
      ],
      "performance_decay_threshold": 0.05
    }
  }
}

Preview test configuration

The default config does not assign any inputs to a test, but you can assign inputs to individual tests as needed depending on the datasets and records (models) you want to pass to individual tests.

For this particular documentation template (binary classification), the ValidMind Library provides a sample configuration that can be used to populate the entire documentation using the following inputs as placeholders:

  • A raw_dataset raw dataset
  • A train_dataset training dataset
  • A test_dataset test dataset
  • A trained model instance

As part of updating the config you will need to ensure the correct input_ids are used in the final config passed to run_documentation_tests().

from validmind.datasets.classification import customer_churn
from validmind.utils import preview_test_config

test_config = customer_churn.get_demo_test_config()
preview_test_config(test_config)

Run updated documentation section tests

Using this sample configuration, let's finish populating documentation by running all tests for the Model Development section of the documentation.

Recall that the training and test datasets in our exercise have the following input_id values:

  • train_dataset_final for the training dataset
  • test_dataset_final for the test dataset
config = {
    "validmind.model_validation.ModelMetadata": {
        "inputs": {"model": "log_reg_model_v1"},
    },
    "validmind.data_validation.DatasetSplit": {
        "inputs": {"datasets": ["train_dataset_final", "test_dataset_final"]},
    },
    "validmind.model_validation.sklearn.PopulationStabilityIndex": {
        "inputs": {
            "model": "log_reg_model_v1",
            "datasets": ["train_dataset_final", "test_dataset_final"],
        },
        "params": {"num_bins": 10, "mode": "fixed"},
    },
    "validmind.model_validation.sklearn.ConfusionMatrix": {
        "inputs": {"model": "log_reg_model_v1", "dataset": "test_dataset_final"},
    },
    "my_test_provider.ConfusionMatrix": {
        "inputs": {"dataset": "test_dataset_final", "model": "log_reg_model_v1"},
    },
    "my_custom_tests.ConfusionMatrix:test_dataset_normalized": {
        "inputs": {"dataset": "test_dataset_final", "model": "log_reg_model_v1"},
    },
    "validmind.model_validation.sklearn.ClassifierPerformance:in_sample": {
        "inputs": {"model": "log_reg_model_v1", "dataset": "train_dataset_final"}
    },
    "validmind.model_validation.sklearn.ClassifierPerformance:out_of_sample": {
        "inputs": {"model": "log_reg_model_v1", "dataset": "test_dataset_final"}
    },
    "validmind.model_validation.sklearn.PrecisionRecallCurve": {
        "inputs": {"model": "log_reg_model_v1", "dataset": "test_dataset_final"},
    },
    "validmind.model_validation.sklearn.ROCCurve": {
        "inputs": {"model": "log_reg_model_v1", "dataset": "test_dataset_final"},
    },
    "validmind.model_validation.sklearn.TrainingTestDegradation": {
        "inputs": {
            "model": "log_reg_model_v1",
            "datasets": ["train_dataset_final", "test_dataset_final"],
        },
        "params": {
            "metrics": ["accuracy", "precision", "recall", "f1"],
            "max_threshold": 0.1,
        },
    },
    "validmind.model_validation.sklearn.MinimumAccuracy": {
        "inputs": {"model": "log_reg_model_v1", "dataset": "test_dataset_final"},
        "params": {"min_threshold": 0.7},
    },
    "validmind.model_validation.sklearn.MinimumF1Score": {
        "inputs": {"model": "log_reg_model_v1", "dataset": "test_dataset_final"},
        "params": {"min_threshold": 0.5},
    },
    "validmind.model_validation.sklearn.MinimumROCAUCScore": {
        "inputs": {"model": "log_reg_model_v1", "dataset": "test_dataset_final"},
        "params": {"min_threshold": 0.5},
    },
    "validmind.model_validation.sklearn.PermutationFeatureImportance": {
        "inputs": {"model": "log_reg_model_v1", "dataset": "test_dataset_final"},
    },
    "validmind.model_validation.sklearn.SHAPGlobalImportance": {
        "inputs": {"model": "log_reg_model_v1", "dataset": "test_dataset_final"},
        "params": {"kernel_explainer_samples": 10},
    },
    "validmind.model_validation.sklearn.WeakspotsDiagnosis": {
        "inputs": {
            "model": "log_reg_model_v1",
            "datasets": ["train_dataset_final", "test_dataset_final"],
        },
        "params": {
            "thresholds": {"accuracy": 0.75, "precision": 0.5, "recall": 0.5, "f1": 0.7}
        },
    },
    "validmind.model_validation.sklearn.OverfitDiagnosis": {
        "inputs": {
            "model": "log_reg_model_v1",
            "datasets": ["train_dataset_final", "test_dataset_final"],
        },
        "params": {"cut_off_percentage": 4},
    },
    "validmind.model_validation.sklearn.RobustnessDiagnosis": {
        "inputs": {
            "model": "log_reg_model_v1",
            "datasets": ["train_dataset_final", "test_dataset_final"],
        },
        "params": {
            "scaling_factor_std_dev_list": [0.0, 0.1, 0.2, 0.3, 0.4, 0.5],
            "accuracy_decay_threshold": 4,
        },
    },
}


full_suite = vm.run_documentation_tests(
    section="model_development",
    config=config,
)
2026-09-24 21:49:41,762 - WARNING(validmind.vm_models.test_suite.runner): Config key 'my_test_provider.ConfusionMatrix' does not match a test_id in the template.
    Ensure you registered a content block with the correct content_id in the template
    The configuration for this test will be ignored.
2026-09-24 21:49:41,762 - WARNING(validmind.vm_models.test_suite.runner): Config key 'my_custom_tests.ConfusionMatrix:test_dataset_normalized' does not match a test_id in the template.
    Ensure you registered a content block with the correct content_id in the template
    The configuration for this test will be ignored.
Test suite complete!
34/34 (100.0%)

Test Suite Results: Binary Classification V2

Check out the updated documentation on ValidMind.

Template for binary classification models.

▶ Model Development

In summary

In this final notebook, you learned how to:

With our ValidMind for development series of notebooks, you learned how to document a record (model) end-to-end with the ValidMind Library by running through some common scenarios in a typical development setting:

  • Running out-of-the-box tests
  • Documenting your record (model) by adding evidence to documentation
  • Extending the capabilities of the ValidMind Library by implementing custom tests
  • Ensuring that the documentation is complete by running all tests in the documentation template

Next steps

Work with your documentation

Now that you've logged all your test results and generated a draft for your documentation, head to the ValidMind Platform to wrap up your documentation. Continue to work on your documentation by:

  • Run and log more tests: Use the skills you learned in this series of notebooks to run and log more individual tests, including custom tests, then insert them into your documentation as supplementary evidence. (Learn more: validmind.tests)

  • Inserting additional test results: Add Test-Driven Blocks under any relevant section of your documentation. (Learn more: Work with test results)

  • Making qualitative edits to your test descriptions: Click on the description of any inserted test results to review and edit the ValidMind-generated test descriptions for quality and accuracy. (Learn more: Working with documentation)

  • View guidelines: In any section of your documentation, click ValidMind Insights in the top right corner to reveal the Documentation Guidelines for each section to help guide the contents of your documentation. (Learn more: View development guidelines)

  • Collaborate with other stakeholders: Use the ValidMind Platform's real-time collaborative features to work seamlessly together with the rest of your organization, including validators. Review suggested changes in your content blocks, work with versioned history, and use comments to discuss specific portions of your documentation. (Learn more: Collaborate with others)

When your documentation is complete and ready for review, submit it for approval from the same ValidMind Platform where you made your edits and collaborated with the rest of your organization, ensuring transparency and a thorough development history. (Learn more: Submit documents)

Learn more

Now that you're familiar with the basics, you can explore the following notebooks to get a deeper understanding on how the ValidMind Library allows you generate documentation for any use case:

Use cases

Discover more learning resources

Learn more about the ValidMind Library tools we used in this notebook:

We offer many interactive notebooks to help you automate testing, documenting, validating, and more:

Or, visit our documentation to learn more about ValidMind.

Copyright © 2023-2026 ValidMind Inc. All rights reserved.
Refer to LICENSE for details.
SPDX-License-Identifier: AGPL-3.0 AND ValidMind Commercial
